Custom Adapter Module Development for MAC Panel SCOUT

  • ITAR Registered

  • Custom Electronics Specialist

  • Platinum-level National Instruments Alliance Partner, putting us in the top 2% worldwide

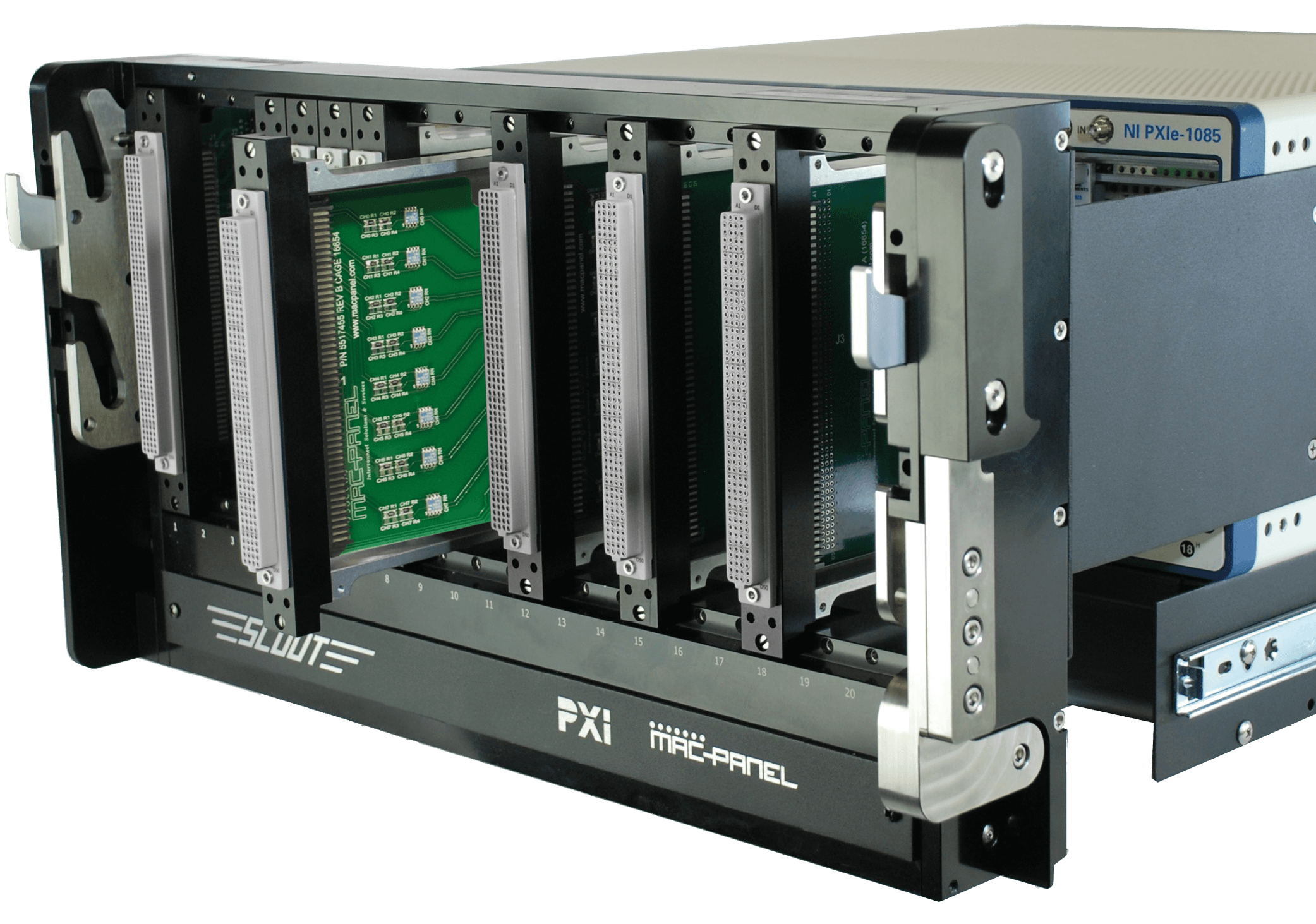

Custom Adapter Module Development for MAC Panel’s SCOUT

  • DC to 1+ GS/s analog I/O

  • DC to 1 Gb/s digital I/O

  • High-speed PCB simulation for impedance matching and cross-talk considerations

  • Customized hardware between UUT/DUT and PXI module

Capabilities:

  • Multifunction I/O on a single custom adapter module – Analog I/O and Digital I/O custom

  • High-speed parallel/serial data (100s of MHz)

  • Double Data Rate (DDR) I/O

  • LVDS I/O (single-ended, and LVDS or mLVDS)

  • High-speed Serial Data – 1 Gbps+

  • Custom I/O interfacing

  • Custom connector interfacing to UUT (including High Density)

  • Test point connections for easier verification of signals

  • SFP+ connector interfacing

  • High-speed I/O Buffering

  • High-speed PCB design with High-speed PCB simulation for impedance matching and cross-talk considerations

  • Power allotment planning

  • Mechanical design

  • Sensor Simulation

Need a custom adapter module?

Yes, I need a custom adapter module for a MAC Panel SCOUT »
